Automatic Handling Equipment for Bolts/Round bars/Steel billets

  • 1 - 1 Sets
    $3,800.00
  • >=2 Sets
    $3,750.00
Model Number:
KX-T500
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
KEXIN
Warranty:
1 year
After-sales Service Provided:
Video technical support
Applicable Industries:
Manufacturing Plant
Product name:
Fully Automatic Feeding Machine
Operator Type:
Fully Automatic
Voltage:
220V/50Hz
Power Consumption:
160W/h
Air Pressure:
0.6MPa
Net Weight:
450KG
Load capacity:
400-500KG
Scope of Application:
workpiece with diameter 18mm-65mm and length 25mm-150mm
Feeding Speed:
Stepless speed regulation
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export Standard Packing Wooden Case
Port
SHAGNHAI PORT
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Video Description

High quality CE certificated KX-5188A35 35kw high frequency induction metal forging machine

Product Description





Technical Parameters

Model

          KX-T500

Power Consumption

          160W/h

Input Voltage

  Single-phase 220V 50/60HZ

Silo Capacity

           400-500KG

Efficiency

           95%

Duty cycle

           100%

Volume(mm 3)

1700X1150X1200 (length, width and height) can be customized according to customer requirements

Net  Weight

450KG

Air Pressure

≥0.6MPa

Feeding Speed

stepless speed regulation

Application



Workpiece with diameter Φ18mm-80mm and length 25mm-150mm







Features & Characteristics



1. This equipment adopts chain conveyor, which has long service life, it is durable, with high power, fast moving speed and stable performance, ensuring the balance transportation of materials;
2. This equipment is fed in gas-electric hybrid mode, easy to maintain, intelligent judgment of feeding, employed with imported cylinders and electronic products to ensure fast, durable and reliable feeding response;
3. Optimize the height of the feeding bin to effectively reduce the labor intensity;
4. It has an exclusive large-capacity storage bin, reducing the number of feeding, safe and conven-ient;
5. The automatic feeding of this equipment reduces the manual assisting time, which increases the production volume compares with the original manual feeding;
6. It effectively decreases the costs and reduces the number of employees so as to achieve that only one person can control multiple machines, so that the cost of products can be substantially controlled.

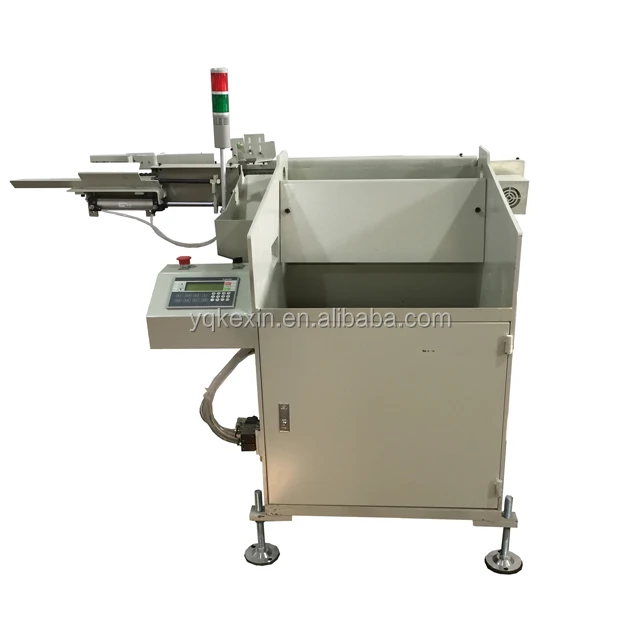

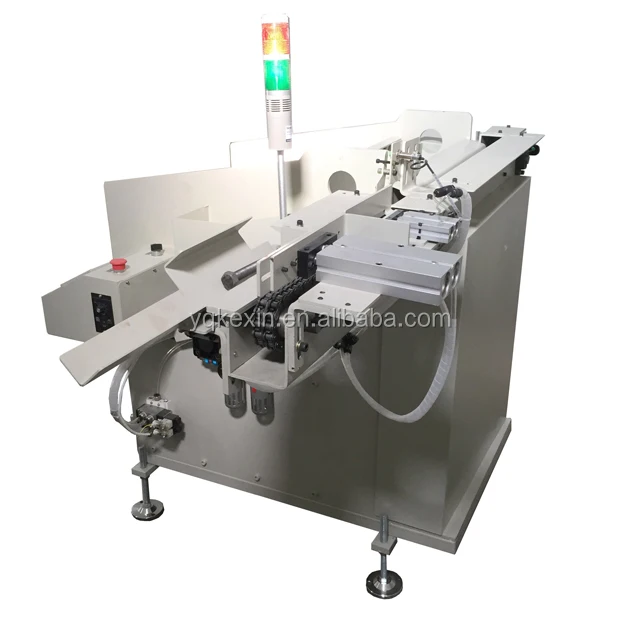

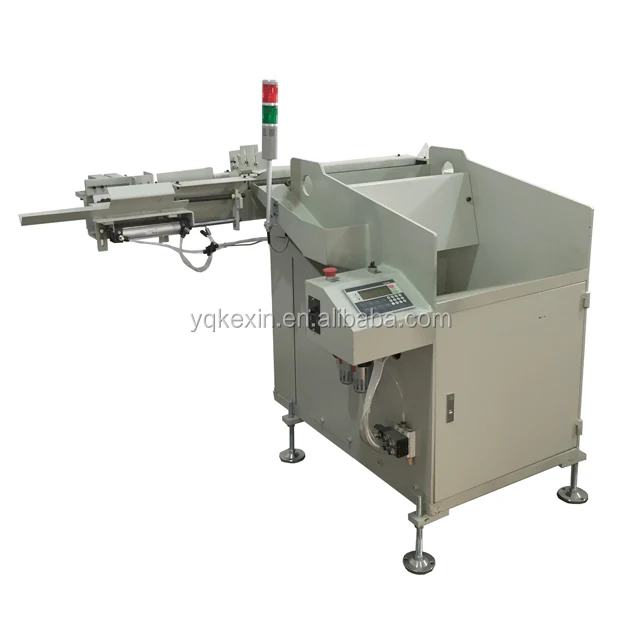

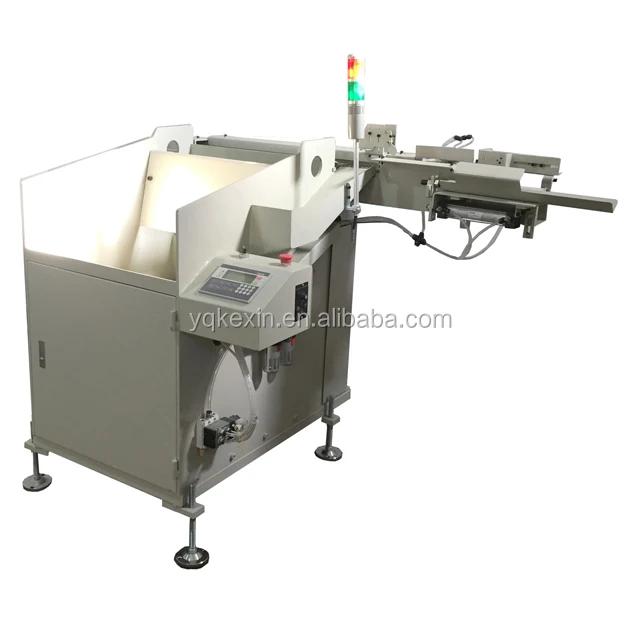

Photo of KX-T500  Fully-automatic Feeding Machine





right side.jpgleft side.jpgright back.jpg





Advantages:

1)Automatic feeding of the stub bar, never jamming, with uniform feeding time and uniform heating of the workpieces, saving labor,
2)With 500kg silo capacity, the feeder can be customized according to the workpiece size.





Application range:


This equipment is available for medium frequency induction heating machine, high frequency in-duction heating machine and super audio induction heating machine.

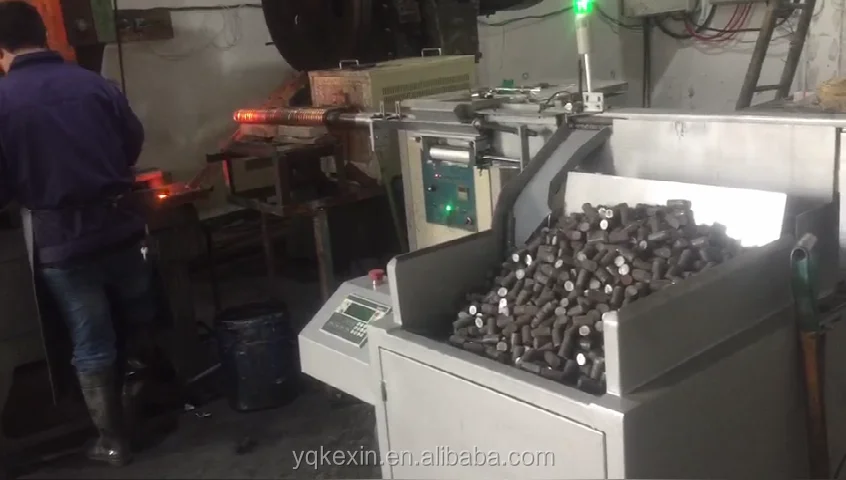

Feeder Usage:

It is widely used for precision forging of motor car parts, bolts, nuts, gears, half shaft links, bear-ings, etc. Auto parts quenching, high frequency quenching, heat treatment, induction heating, etc.















1 (1).png













Packaging & Shipping



Packing Details:Export standard packing,inner carton outer wooden box,double protection

Delivery Details:In stock,in one day after getting payment.

.jpg























Our Services

Pre-sale service:

We will recommend the most suitable machine for customers according to their requirements

 In-sale service:

(1) We will strictly manufacture the machine according to relevant technical standards.

(2) We will take run test according to relevant equipment test run regulations.

(3) We will strictly check up the machine, before delivery, only good machine will be sent to customers.
 (4) We will delivery on time.

After-sale service:
(1)We will be free to guide the installation, commissioning and test run, by sending the installation drawings, and sometimes to call or send e-mail.
(2)We will carry out a one-year warranty period (e.g. excluding normal wear and tear parts and parts damage compensation caused by improper operation.
(3)We will be free to replace all equipment components during warranty period. The potential problems of customer service and customer service after sales.
(4)Provide long term technical support. Also for different work pieces, to guide and help to produce the inductor.







FAQ


1. Which countries your products are exported to?
 Our products have been sold all over the world and with related certifications.
2. How about the warranty?
All our products have one year quality warranty, during the warranty period, the spare parts for replacement are free. And we provide life long technical support and other assistance.

3. How to install your machine?
  We have installation instruction papers and videos, we will teach till you can do it yourself.

4. What about delivery?
We offer assistance on seeking best shipping way and suitable forwarder .
Any loading port and any destination city address are both OK for us.

5. How about the payment terms and delivery time?
Payment terms for any machines: 100% T/T/ Western Union/ESCROW with buyer protection.
We have machine in stock,so we surely will send out the machine after getting payment in one day ,if no any special adjustment request from clients.

6. If I have paid but can not receive the goods, how should I do?
Alibaba international website is a famous trade website and it has run very well these years.
Every supplier on it has paid a large amount membership fee, and spare much effort to manage their business well.
We have Chinese business licenses which can be checked  on Chinese official website or we can show it to you,and these licenses are also kept back-up on Alibaba
If we do anything illegal without honest,we would get punished very badly after you Sued us.so that your concern will never appear, please do not worry

7. Is your goods has CE certificate?
Yes, all our goods has CE certificated. All machines are high quality goods.

8. What is your company: Trader or Manufacturer ?
We are manufacturer and have a big factory , warmly welcome to visit our factory and contact us.
